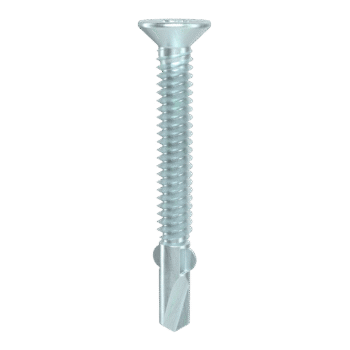

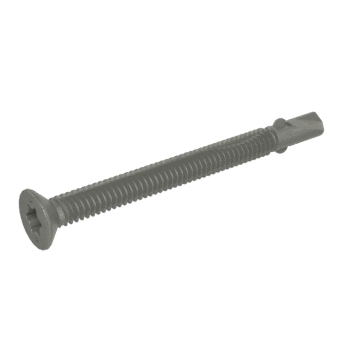

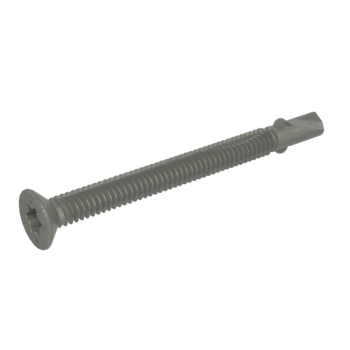

Star Drive Wafer Head Screw with Wings

SKU: NSF12212P5

Pro-Twist Star Drive Wafer Head Screws with Wings are designed for efficient fastening of plywood to light gauge metal framing. Self-drilling point with wings removes material during driving to protect fine threads. Wings burn off with metal contact and fine threads grip metal substrate for a secure hold. Flat head provides a wide bearing surface for a strong hold. Exterior coating provides robust corrosion resistance and the star drive creates a strong tool tip to fastener connection

HIGHLIGHTS

  • Intended for use with plywood up to 2-1/4 in.
  • Made from high carbon steel
  • For use in interior applications
  • application-8

    Application:

    Plywood to Metal Screws

  • nail-flat-head

    Head Type:

    Flat Head

  • fine-thread

    Thread Type:

    Fine Thread

  • star-drive

    Drive Type:

    Star Drive

Details

  • Flat head for a smooth finish and wide bearing surface
  • Star drive for a secure tool tip to fastener connection

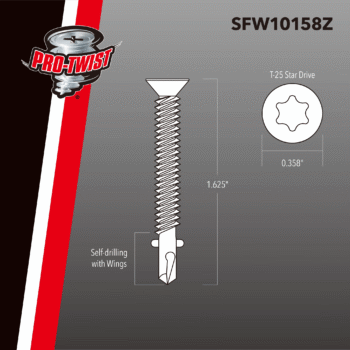

  • Self-drilling point with wings for reduced pre-drilling
  • Hand Drive
    Yes
  • Gauge
    #10, #12, #14
  • Length
    1-7/16 in., 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 1-5/8 in., 2 in., 2-1/2 in., 2-3/4 in, 3-1/4 in.
  • Application
    Plywood to Metal Screws
  • Head Type
    Flat Head, Wafer Head
  • Thread Type
    Fine Thread
  • Point Type
    Self-Drilling, Self-Drilling Point, Self-Drilling Point with Wings
  • Self-Drilling
    Yes
  • Drive Type
    Star Drive
  • Finish or Coating
    Exterior Coated, Zinc Plated
  • Base Material
    High Carbon Steel
  • Piece Count
    142, 168, 245, 303, 480, 49, 61, 1000, 2000, 3000, 4000, 5000, 8000
  • Packaging
    Box, Tub
  • Code Approvals
    ICC-ES Evaluation Listing ESL-1262, ICC-ES Evaluation Report ESR-4706, N/A
