SKU: SWD1034P

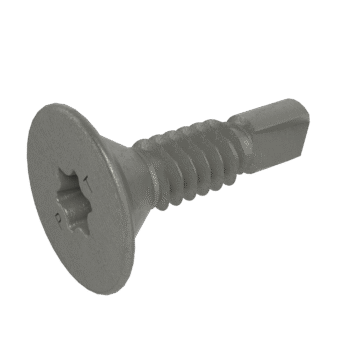

Pro-Twist Star Drive Wafer Head Screws with Wings are designed for efficient fastening of plywood to light gauge metal framing. Self-drilling point makes installation fast without the need to pre-drill. Fine threads grip metal substrate for a secure hold. Wafer head provides a wide bearing surface for a strong hold. Exterior coated for robust corrosion resistance and star drive creates a strong tool tip to fastener connection.

HIGHLIGHTS

Intended for use with plywood up to 1/2 in. Made from high carbon steel For use in interior and exterior applications
  • logo@2x

    Application:

    Plywood to Metal

  • nail-flat-head

    Head Type:

    Flat Head

  • fine-thread

    Thread Type:

    Fine Thread

  • logo@2x

    Self-Drilling:

    Self Drilling

Details

Wafer Head for a smooth finish and wide bearing surface
Star drive for a secure tool tip to fastener connection
Self Drilling point for efficient installation

  • Hand Drive
    Yes
  • Gauge
    #10, #12, #14
  • Length
    1-7/16 in., 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 1-5/8 in., 2 in., 2-1/2 in., 2-3/4 in, 3-1/4 in.
  • Application
    Plywood to Metal
  • Head Type
    Flat Head, Wafer Head
  • Thread Type
    Fine Thread
  • Point Type
    Self-Drilling, Self-Drilling Point, Self-Drilling Point with Wings
  • Self-Drilling
    Yes
  • Drive Type
    Star Drive
  • Finish or Coating
    Exterior Coated, Zinc Plated
  • Base Material
    High Carbon Steel
  • Piece Count
    142, 168, 245, 303, 480, 49, 61, 1000, 2000, 3000, 4000, 5000, 8000
  • Packaging
    Box, Tub
