Self-Drilling Hex Washer Head Framing Screws - Pro Twist

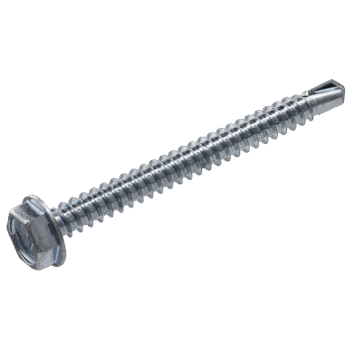

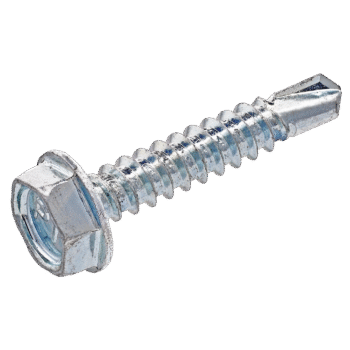

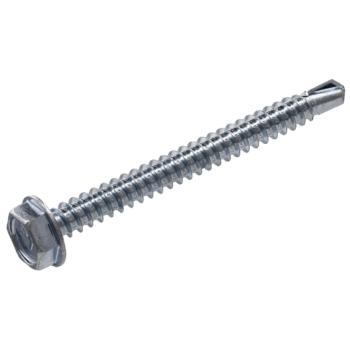

HWD10200 3/4 Angled Product Photo (3000x3000)

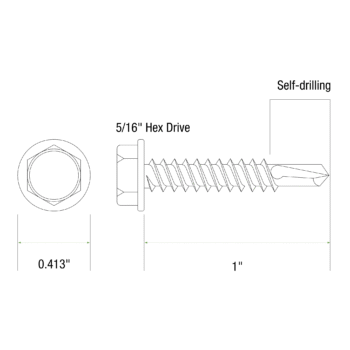

HWD10200 Diagram Infographic (3000x3000)

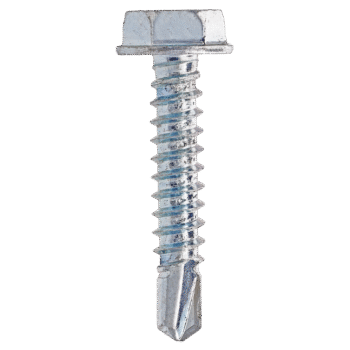

HWD10200 Front View Product Photo (3000x3000)

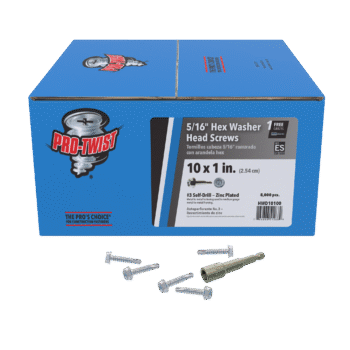

HWD10200 Front Package with SKU Product Photo (3000x3000)

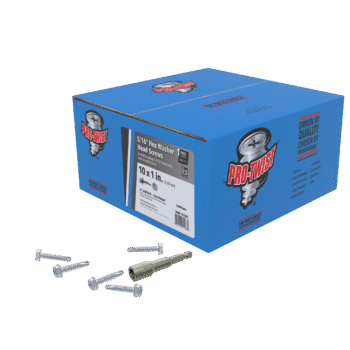

HWD10200 3/4 Angled Package with SKU Product Photo (3000x3000)

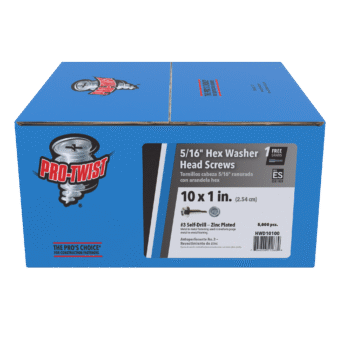

HWD10200 Front Package Product Photo (3000x3000)

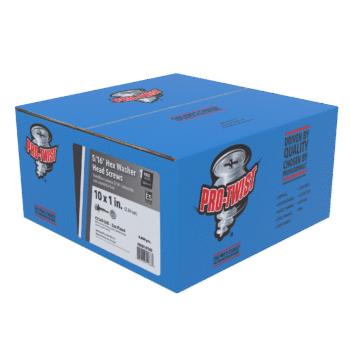

HWD10200 3/4 Angled Package Product Photo (3000x3000)

hwd10200-photo-product-3-quarter-angled-3000x3000-1

SKU: HWD10200

Select Length

1/2 in.
3/4 in.
5/8 in.
1 in.
1-1/4 in.
1-1/2 in.
2 in.

Select Gauge

#8
#10

Select Point Type

#2 Drill Point
#3 Drill Point

Select Drive Type

1/4 in. Hex Drive
5/16 in. Hex Drive

Select Piece Count

2000
3000
4000
5000
6000
7000
8000
10000

Clear Selection

Pro-Twist® Self-Drilling Hex Washer Head Screws are designed for metal to metal fastening with heavy gauge metal. Commonly used to attach purlins and channels to structural steel studs and in HVAC and ductwork. Zinc plated for enhanced corrosion resistance. Hex drive allows for a strong connection between tooltip and fastener for high torque during driving. #3 drill point pierces through metal substrates and fine threads provide a secure connection in metal to metal applications.

HIGHLIGHTS

Zinc plated hex washer head screws for medium gauge metal to metal fastening
Made from high carbon steel for strength and durability
For sheet metal fabricators and HVAC contractors

Add To Submittal

Application:

Metal to Metal
Head Type:

Hex Washer Head
Thread Type:

Full Thread
Point Type:

#3 Drill Point

Details

Hex washer head for secure driving and solid tooltip to fastener connection
5/16″ Hex Head for a secure hold during driving
Fine threads grip metal substrate and provide strong compressive grip
Zinc plated for increased corrosion resistance
For HVAC and metal fabrication
#3 Self-drilling point cuts into metal studs quickly and easily
10X2 Zinc Hex Washer Hd #3 S/D 2M

Hand Drive

Hand Drive
Gauge

#8, #10
Length

1/2 in., 3/4 in., 5/8 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in.
Application

Metal to Metal
Head Type

Hex Washer Head
Thread Type

Full Thread
Point Type

#2 Drill Point, #3 Drill Point

Self-Drilling

Yes
Drive Type

1/4 in. Hex Drive, 5/16 in. Hex Drive
Finish or Coating

Zinc Plated
Base Material

High Carbon Steel
Code Approvals

ICC-ES Evaluation Report ESR-1408
Packaging

Carton
Piece Count

2000, 3000, 4000, 5000, 6000, 7000, 8000, 10000

Technical Documents

Self-Drilling Hex Washer Head Framing Screws
