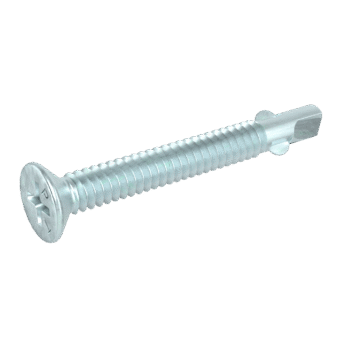

Phillips Wafer Head Screws with Wings

SKU: PF10158

SKU: PF10158

Pro-Twist® Phillips Wafer Head Screws with Wings are designed to attach 7/8 in. to 2-1/4 in. plywood to 16 to 12 gauge metal studs. Zinc plated for use where corrosion and rust are a concern, the wafer head provides a strong hold. #2 drill point with wings drives efficiently through wood and metal materials and the fine threads grip light gauge metal for a reliable connection. A #2 Phillips Drive minimizes the risk of overdriving.

HIGHLIGHTS

  • Zinc plated wafer head wood to metal screws with wings
  • Made from high carbon steel for durability and strength
  • For attaching plywood to 18 to 12 gauge metal studs
  • application-wood-to-metal

    Application:

    Wood to Metal

  • wafer-head

    Head Type:

    Wafer Head

  • fine-thread

    Thread Type:

    Fine Thread

  • 2-drill-point-with-wings

    Point Type:

    #2 Drill Point with Wings

Details

  • Wafer head with wings eliminate the need for pre-drilling
  • #2 Phillips reduces the chance of over driving
  • Zinc coating provides corrosion resistance
  • Use to attach 5/8 in. to 3/4 in. plywood to metal studs
  • #2 drill point pierces through wood and metal easily
  • 10X1-5/8″ Zinc Ph Flat Hd S/D W/Wings 3M
  • Hand Drive
    Hand Drive
  • Gauge
    #10, #12, #14
  • Length
    1-5/8 in., 2 in., 2-1/2 in., 2-3/4 in, 3-1/4 in.
  • Application
    Wood to Metal
  • Head Type
    Wafer Head
  • Thread Type
    Fine Thread
  • Point Type
    #2 Drill Point with Wings, #3 Drill Point with Wings
  • Self-Drilling
    Yes
  • Drive Type
    #2 Phillips, #3 Phillips
  • Finish or Coating
    Exterior Coated, Zinc Plated
  • Base Material
    High Carbon Steel
  • Code Approvals
    ICC-ES Evaluation Report ESR-4706
  • Packaging
    Carton
  • Piece Count
    1000, 2000, 3000
